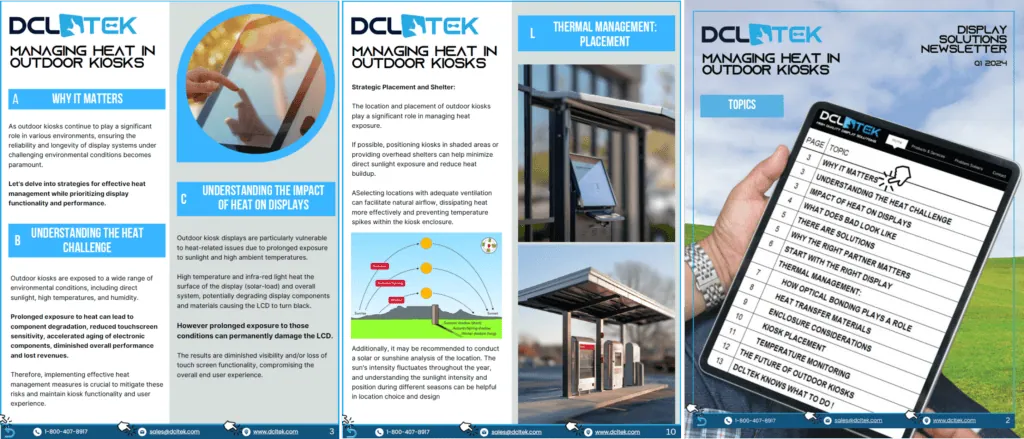

Heat is the leading cause of failure for outdoor kiosk displays. This DCLTEK white paper explains how heat and solar load damage LCDs and touch screens, and the display, materials, enclosure and placement strategies that keep an outdoor kiosk readable and working.
- How heat affects displays
- Questions to answer early
- Display selection
- Optical bonding and heat
- Heat transfer materials
- Enclosure design
- Placement and shelter
- Temperature monitoring and control
- FAQ
How heat affects outdoor kiosk displays
Outdoor kiosks are exposed to direct sunlight, high temperatures and humidity. Prolonged exposure to heat can lead to component degradation, reduced touch screen sensitivity, accelerated aging of electronic components, lower overall performance and lost revenue.
Outdoor kiosk displays are especially vulnerable because of long exposure to sunlight and high ambient temperatures. High temperature and infrared light heat the surface of the display (solar load) and the overall system. In the short term this can cause the LCD to turn black. Prolonged exposure can permanently damage the LCD. The results are reduced visibility or loss of touch function, and a poor experience for the end user.
Questions to answer early in the design
Designing a display and touch panel into an outdoor, public-access kiosk calls for an early discussion of:
- The use case: how the end user will interact with the device.
- Kiosk chassis design, including active or passive heating and cooling.
- Placement locations: Arizona and Minnesota, for example, are very different environments.
- Installation design: covered, exposed or partly sheltered.
Your display partner should have existing experience and demonstrated success in this area. It is not enough to offer a very bright display with a touch panel and call it suitable for outdoor use. Compare the conditions and use case of an outdoor kiosk with a military device and you will find they are not very different.
Display selection
High-brightness LCDs produce much higher luminance than standard displays, so the screen stays visible in direct sunlight where a standard screen would look washed out.
- Brightness: set it for the application and location. 1,500 nits is a good starting point, and up to 5,000 nits is achievable. The challenge is balancing brightness against power consumption and the heat it generates. Well-designed LED backlights with quality LEDs help strike that balance.
- Operating temperature: specify an LCD operating range of at least -20 to 70°C, with up to 85°C preferred. This rating is the ambient temperature around the LCD before failure.
- High-Tni LC cells: where available, an LCD cell with high-Tni liquid crystal, rated up to 110°C, further reduces the chance of LCD failure in high heat.
- UV-resistant materials: UV-resistant touch panel or front lens materials reduce the breakdown that leads to clouding or yellowing over time.
- Optical films: films that increase the light the backlight transmits through the LCD, and films that cut glare or raise contrast, improve readability in direct sunlight with no impact on heat management.
- IR-blocking films: these reduce solar load, the surface heat from infrared, which lowers the heat transmitted to the LCD and the risk of failure.
See DCLTEK’s sunlight-readable touch monitors and sunlight-readable embedded displays.
How optical bonding helps with heat
Optical bonding attaches the touch panel or front lens directly to the LCD with an optically clear adhesive, either a pre-cured sheet (OCA) or a liquid that is cured in place (LOCA). It removes the air gap between the two parts.
- Better visibility: fewer reflections from ambient light and higher contrast in bright conditions.
- Better durability: more resistance to shock and vibration, which matters for public-access devices.
- Less condensation and dust: with no air gap, moisture and dust can’t get between the touch panel and the display.
Bonding can also help with heat:
- Improved thermal conductivity: the adhesive conducts heat better than the air it replaces, which can help heat move across the display assembly.
- More even temperature: bonding doesn’t cool the components directly, but it can spread temperature more evenly across the display surface, which may help overall thermal management depending on the design and materials.
Heat transfer materials
Thermal interface materials are a critical but often overlooked part of thermal management in outdoor touch monitors. They matter in key areas inside the LCD monitor design and, where possible, between the monitor and the kiosk chassis.
Thermal transfer tape
Adhesive tape engineered to conduct heat from heat-generating components toward heat sinks or other cooling paths. It is solid at room temperature and sticks on contact, so it is a clean solution. Thickness must suit the application: tape that is too thick can reduce thermal conductivity, and tape that is too thin may not fill the gaps.
Thermal compounds
Also called thermal paste, thermal grease or thermal interface materials (TIMs), these improve conductivity between two surfaces. Application is critical: too little leaves gaps, too much can trap heat. Compounds can dry out and lose effectiveness over time, so choosing the right compound for the use case and applying it correctly are key to performance and service life.
Enclosure design
- Heat-resistant materials: avoid heat-absorbing dark metals and plastics in favor of lighter colors that reflect sunlight. Materials with low thermal conductivity limit heat transfer into the enclosure.
- Ventilation and airflow: vents or fans positioned to promote airflow expel hot air and draw in cooler air, while keeping dust and moisture out.
- Insulation and sealing: thermal barriers and sealed seams help keep internal temperatures stable and protect components from outside heat.
Placement and shelter
Where possible, place kiosks in shaded areas or under overhead shelters to cut direct sunlight and heat buildup. Locations with good natural airflow help heat dissipate. A solar or sunshine analysis of the site is also worth doing: sunlight intensity and the sun’s position change through the year, and knowing them helps with both site selection and design.
Temperature monitoring and control
Integrated sensors provide real-time temperature data so problems can be found and corrected quickly. Automated designs can shut down the LCD or other sensitive components when temperatures exceed safe limits, and thermostatically controlled fans or liquid cooling help hold operating temperatures where they belong.
Outdoor kiosk displays also need to be designed for water, UV and vandalism. See DCLTEK’s kiosk and self-service displays.
Frequently asked questions
How bright should an outdoor kiosk display be?
1,500 nits is a good starting point for direct sunlight, and up to 5,000 nits is achievable. Brightness has to be balanced against power consumption and the heat it generates.
What operating temperature should an outdoor kiosk LCD have?
At least -20 to 70°C, with up to 85°C preferred. Where available, a high-Tni LCD cell rated up to 110°C further reduces the risk of failure in high heat.
What is solar load?
Solar load is the heating of the display surface by sunlight and infrared. It can turn an LCD black in the short term and permanently damage it over time. IR-blocking films reduce it.
Does optical bonding help with heat?
Yes, indirectly. Removing the air gap improves thermal conductivity across the display assembly and spreads temperature more evenly, in addition to improving sunlight readability and durability.
What else besides the display affects heat in an outdoor kiosk?
Thermal interface materials, enclosure color and materials, ventilation, sealing, placement and shade, and temperature monitoring with automatic shutdown or cooling.
