Touch panel cover glass can be finished with standard ground and chamfered edges, pencil ground or pencil polished edges, or curved 2.5D and 3D edges. This article explains each option and how to choose the right one for your product’s design, durability and look.
In the evolving landscape of technology, touchscreens have become an integral part of our lives. From smartphones to smart appliances, the smooth glass surfaces we interact with are not only functional but also a testament to thoughtful design.
One crucial aspect of this design is the edge finishing of the touch glass, which plays a pivotal role in aesthetics, durability and functionality.
The Basics of Edge Finishing
Touch glass edge finishing is the process of refining and shaping the edges of the glass to achieve a polished and user-friendly result. This not only enhances visual appeal but also contributes to the overall durability of the device. Prominent edge finishing options that have gained widespread popularity for touch sensor cover glass include standard chamfered, pencil ground and more dynamic 2.5D and 3D edges found on many smart phone devices.
How to Choose an Edge Treatment
Which edge treatment to choose can be based on aesthetics but also the design of the product.
For example:
- Your product has a modern bezel-less look, with the front glass of your touch device acting as the front surface for your users. The edges are not fully protected by your chassis design. In these cases, attention to edge hardness and finish is important to protect the edges from damage.
- Best choice?
- Pencil Ground/Polish
- 2.5D or 3D
- Best choice?
- If your device has a chassis surrounding the edge of the glass, then standard edge ground edges are perfect.
- Best choice?
Popular Cover Glass Edge Treatments
Let’s explore some of the popular options for touch panel cover glass edge treatments.
Ground and Chamfer (Bevel)
This type of edging involves flat grinding glass edges until they are smooth and then running the top and bottom edges along a belt to eliminate sharpness and remove chips. The resulting glass piece features a smooth chamfer top and bottom with an exterior ground edge.

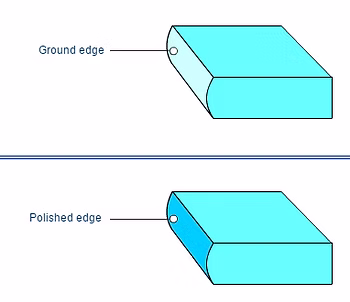

Pencil Ground
Pencil grinding, achieved through the use of a diamond-embedded grinding wheel, is used to create a slightly rounded edge and allows for a frosty, satin, or matte glass finish. “Pencil” refers to the edge radius, which is similar to a pencil or C shape. This grind is also referred to as a Semi-Polished Edge.
Pencil Polish
Pencil polished glass edges are ground smooth, finished with a shiny or glossy polish, and feature a slight curve. The unique finish makes pencil polishing ideal for aesthetics-focused applications. Like pencil-ground edges, the edge’s radius is similar to a pencil or C shape.

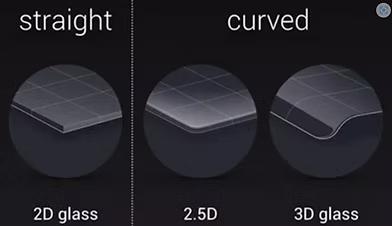

2.5D Edges: The Subtle Curve
2.5D edges represent a refinement in the traditional flat glass design. While the surface remains mostly flat, the edges are gently curved, creating a seamless transition between the glass and the device’s frame. This subtle curvature not only adds an aesthetic dimension but also serves a functional purpose.
The slight curve of 2.5D edges contributes to a more comfortable grip, making devices with such edges pleasant to hold. This design choice is particularly noticeable in smartphones, where manufacturers prioritize a sleek appearance without compromising on ergonomics.
3D Edges: The Futuristic Dimension
Taking edge finishing to the next level, 3D edges introduce a more pronounced curvature, giving the glass a seamless and continuous flow over the device’s sides. This design choice results in a futuristic and immersive look that has become synonymous with flagship smartphones and high-end gadgets.
The significant advantage of 3D edges lies in the immersive user experience they provide. The curved edges extend the display visually, offering an edge-to-edge feel and reducing the perception of bezels. This not only elevates the aesthetic appeal but also enhances the touch interaction by allowing gestures to flow seamlessly from edge to edge.
Considerations in Edge Finishing
When choosing between 2.5D and 3D edges, several factors come into play:
- Aesthetics vs. Functionality: 2D or standard edges provide a clean and safe edge for many applications. While 3D edges offer a more striking visual impact, 2.5D edges strike a balance between aesthetics and ergonomic functionality.
- Manufacturing Complexity: Achieving a flawless 2.5D or 3D edge requires advanced manufacturing processes, making it a more intricate and costly endeavor compared to standard edges.
Conclusion
In the realm of touch glass edge finishing, the choice between the different edge treatments is not just about form but also function. Whether you prefer the modern sophistication of 2.5D and 3D edges or one of the traditional edges, one thing is certain – the design behind these finishing options contribute significantly to the overall user experience in your product.
As technology continues to advance, we can expect further innovations in touch glass edge finishing, offering users an even more seamless and visually stunning interaction with their devices.
Frequently asked questions
What edge treatments are available for touch panel cover glass?
Common options are standard ground and chamfered (beveled) edges, pencil ground (semi-polished) edges, pencil polished edges, and curved 2.5D and 3D edges.
Which edge treatment should I choose if the glass edge is exposed?
If the front glass forms the front surface of a bezel-less product and its edges are not protected by the chassis, edge hardness and finish matter. Pencil ground or polished edges, or 2.5D or 3D edges, are the better choices.
What is the difference between 2.5D and 3D glass edges?
2.5D glass stays mostly flat with gently curved edges for a seamless transition and comfortable grip. 3D glass has a more pronounced curve that flows over the sides of the device for an edge-to-edge look.
Do 2.5D and 3D edges cost more?
Yes. They require more advanced manufacturing processes, making them more intricate and costly than standard edges.
