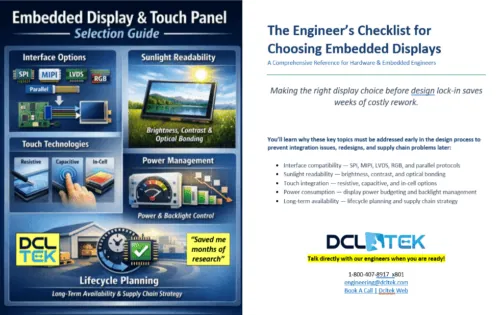

Making the right display choice before design lock-in saves weeks of costly rework. This guide is for hardware engineers, embedded system designers and technical product leads working on products where a display is a primary user interface. It covers the five decision areas that most often cause late-stage problems: interface compatibility, sunlight readability, touch integration, power consumption and long-term availability.
In this guide
1. Introduction
Display selection is one of the most consequential decisions in embedded product design. Unlike processor or memory choices, where pin-compatible alternatives often exist, a display is tightly coupled to the host system through its electrical interface, mechanical form factor, optical stack and firmware driver. A mismatch discovered late in development typically requires a PCB respin, firmware rework and schedule slippage measured in weeks or months.
This guide is written for hardware and embedded engineers responsible for selecting and integrating displays into products ranging from handheld industrial devices to outdoor kiosks. It addresses the five critical decision areas that most commonly cause late-stage problems, with the technical depth needed to make sound choices at the requirements phase.
1.1 How to use this guide
Each chapter maps to one of the five criteria in the selection checklist. Work through them in order: interface compatibility first, then optics, touch, power and finally sourcing. Decision tables throughout each chapter help you quickly map your requirements to a shortlist of display technologies.
1.2 When to start
Display selection should begin during system requirements definition, before schematic capture. At minimum, interface type and form factor should be resolved before PCB layout begins. Optical bonding and touch stack choices must be resolved before mechanical enclosure design.
Warning: Choosing a display after PCB layout is complete is the single most common cause of costly display-related respins. Lock the display interface type before routing the host processor.
2. Interface compatibility
The electrical interface between host processor and display panel determines pixel throughput, cable routing complexity, driver software requirements and EMI behavior. Selecting an incompatible or mismatched interface is the most technically unrecoverable display error, requiring a PCB respin to correct. Understanding the options early is essential.
2.1 Interface overview
| Interface | Resolution range | Cable count | Typical use case | Driver complexity |
|---|---|---|---|---|
| SPI | Up to QVGA (320×240) | 4–6 wires | Small MCU-driven status displays | Low |
| Parallel RGB | Up to WXGA (1280×800) | 20–40 wires | Mid-size panels, FPGAs/DSPs | Medium |
| LVDS (1-channel) | Up to XGA (1024×768) | 4 diff pairs + clock | Industrial panels, fanless PCs | Low–Medium |
| LVDS (2-channel) | Up to WUXGA (1920×1200) | 8 diff pairs + clock | High-res industrial/medical | Medium |
| MIPI DSI (1-lane) | Up to 720p | 1 diff pair + clock | Mobile, wearables | Medium–High |
| MIPI DSI (4-lane) | Up to 4K | 4 diff pairs + clock | Tablets, embedded computing | High |
| eDP | Up to 4K+ | 1–4 lanes | Laptop-class embedded displays | High |
2.2 SPI displays
SPI interfaces suit low-resolution, cost-sensitive applications where a microcontroller drives a small status display. Maximum achievable frame rates at QVGA resolution over SPI are typically 10–30 fps depending on clock speed. SPI is not suitable for color video or animations requiring more than about 15 fps at resolutions above 320×240.
Key engineering considerations:
- SPI clock frequency directly limits refresh rate. Budget 8 bits per pixel × pixels × frames per second.
- Most SPI panels require a hardware reset line in addition to CS, CLK, MOSI and DC.
- Avoid bus sharing with other SPI peripherals if display refresh rate is critical.
- Chip-select hold time requirements vary widely between display controllers. Check the datasheet.
2.3 MIPI DSI
MIPI DSI (Display Serial Interface) is the dominant interface for mobile and embedded high-resolution displays. Its low pin count and high bandwidth make it attractive for compact designs. However, DSI imposes specific electrical and software requirements that must be satisfied by the host processor.
Key engineering considerations:
- Confirm the host SoC MIPI DSI lane count and maximum lane speed (Gbps per lane) match the panel datasheet requirements.
- MIPI DSI operates in two modes: Video Mode (continuous pixel stream) and Command Mode (frame-buffered). Confirm mode compatibility with your application processor’s MIPI IP block.
- Lane termination and ESD protection placement are critical. Follow the MIPI Alliance physical layer specification and your display vendor’s layout guide.
- DSI panel initialization sequences (MIPI DCS commands) must be implemented in firmware. Obtain the exact init sequence from the panel manufacturer; generic sequences often fail.
- Maximum trace length between SoC and display connector is typically 100–150 mm at high lane rates. Always verify with eye-diagram simulation or measurement.
Tip: When using Linux, verify the panel driver exists in the kernel DRM/KMS subsystem before committing to a panel. Writing a new MIPI DSI panel driver from scratch adds 1–3 weeks to the schedule.
2.4 LVDS
LVDS (Low Voltage Differential Signaling) remains widely used in industrial and medical display applications because of its noise immunity, long cable drive capability and mature ecosystem of industrial-grade panels. Single-channel LVDS handles up to XGA; dual-channel extends this to WUXGA.
Key engineering considerations:
- LVDS uses the OpenLDI (FPD-Link) or JEIDA standard. Confirm the panel uses the same bit mapping as the host; mismatched bit ordering produces color-scrambled output.
- LVDS requires 100 Ω differential termination at the receiver (panel side). Confirm whether the panel includes internal termination or requires external resistors.
- Cable lengths up to 1–2 m are achievable with careful design. Beyond this, consider FPD-Link III (serialized LVDS over coax) for longer cable runs.
- LVDS panels are available with industrial temperature ratings (−40°C to +85°C) and extended lifetimes, making them well suited for 10+ year product lifetimes.
2.5 eDP
Embedded DisplayPort is used in high-resolution embedded applications where laptop-class image quality is required. It is common in ARM-based SBCs and x86 embedded computing modules but requires careful signal integrity work.
- Confirm the DisplayPort AUX channel is supported by the host for panel capability enumeration and backlight control (DPCD register access).
- eDP link training must complete successfully at start-up. Implement retry logic in firmware.
- eDP panels typically require 3.3 V panel power and separate backlight power. Verify sequencing requirements.
3. Sunlight readability
Outdoor and semi-outdoor deployments impose optical requirements that standard office-grade panels cannot meet. Failing to specify readability requirements early leads either to costly optical stacking late in development or to products that are unusable in their intended environment.
3.1 Brightness requirements by environment
| Environment | Min. brightness | Contrast ratio (min) | Notes |
|---|---|---|---|
| Indoor office / controlled lighting | 250–350 nits | 500:1 | Standard panel spec sufficient |
| Indoor bright (retail, hospital) | 400–600 nits | 700:1 | Consider anti-glare coating |
| Indoor near window / ambient light | 600–800 nits | 800:1 | Optical bonding recommended |
| Semi-outdoor (covered, shaded) | 800–1,000 nits | 1000:1 | High-bright panel required |
| Outdoor (direct sunlight) | 1,000–2,500+ nits | 1500:1+ | Transflective or high-bright + optical bonding |
3.2 Optical bonding vs. air gap
Standard displays use an air gap between the cover glass and the LCD panel. This air gap creates two reflective surfaces, each reflecting about 4% of ambient light back to the viewer. In bright environments, this reflected ambient light washes out the image.
Optical bonding replaces the air gap with an optically clear adhesive (OCA) or resin (OCR), eliminating internal reflections and improving contrast ratio in high-ambient-light conditions by 2–3×. It also improves mechanical robustness and seals the optical cavity against condensation.
Optical bonding trade-offs:
- Adds 2–5 mm to display stack height. Verify enclosure clearance.
- Increases display module cost by $15–$80 depending on size.
- Bonded assemblies cannot be field-repaired. Touch or glass damage requires full module replacement.
- Specify OCA vs. OCR based on operating temperature range. Some OCA films delaminate below −20°C.
Warning: Do not add optical bonding as a late design change. It changes the mechanical envelope, thermal characteristics and supply lead time. Decide during the display module specification phase.
3.3 Anti-reflection and anti-glare treatments
Cover glass treatments reduce glare through two different mechanisms:
- Anti-glare (AG): surface roughening scatters incident light, reducing specular reflections. It can reduce perceived sharpness; avoid it for medical imaging or text-critical applications.
- Anti-reflection (AR): a thin-film interference coating reduces reflection to under 0.5%. It preserves image sharpness but is sensitive to surface contamination and abrasion. Suitable for medical, avionics and clean environments.
- Anti-reflection + anti-glare (AR+AG): a combined treatment. Higher cost but effective for general outdoor use.
3.4 Transflective displays
Transflective LCDs use a partially reflective back surface that reflects ambient light back through the liquid crystal cell, so the display stays readable without a backlight in bright conditions. In low light, the LED backlight supplements the ambient reflection.
This technology is particularly effective for outdoor devices where battery life is critical: the backlight can be dimmed or disabled in full sunlight, reducing power consumption by 50–80%. The trade-off is reduced color gamut and lower maximum brightness in dark conditions compared with transmissive panels.
4. Touch integration
Touch integration is frequently underestimated in complexity. Beyond selecting a touch technology, engineers must address noise immunity, EMI emissions, firmware integration, gloved or wet operation and the effect of cover glass thickness on sensitivity. Identifying these requirements early prevents costly rework of both hardware and firmware.
4.1 Touch technology comparison
| Technology | Multi-touch | Glove / stylus | Water resistance | Durability | Relative cost |
|---|---|---|---|---|---|
| Resistive (4-wire) | No (single point) | Yes (any object) | Poor (gaskets required) | Moderate (film wears) | Low |
| Resistive (5-wire) | No (single point) | Yes (any object) | Poor | Better than 4-wire | Low–Medium |
| Projected capacitive (PCAP) | Yes (10-point) | Conductive stylus | Good (configurable) | High | Medium |
| In-cell / on-cell PCAP | Yes (10-point) | Conductive stylus | Good | High | Medium–High |
| Surface acoustic wave (SAW) | No | Any solid object | Limited | Glass surface only | High |
| Infrared (IR) grid | Yes | Any object | Limited (cleaning) | High | High |
4.2 Projected capacitive (PCAP) deep dive
PCAP is now the dominant technology for consumer, medical and industrial touch interfaces. The sensor is a matrix of X and Y drive/sense electrodes laminated into the display stack. A touch controller IC measures self-capacitance or mutual-capacitance changes to locate touch points.
Controller selection criteria:
- I2C vs. SPI interface to the host. I2C is simpler but limited to lower report rates; SPI supports 200+ Hz for latency-critical applications.
- Interrupt line behavior. Verify active high/low and edge vs. level triggering match the host GPIO configuration.
- Firmware customization. Most PCAP controllers require vendor-supplied firmware tuning tools to optimize sensitivity for your specific cover glass thickness and dielectric.
- Glove mode and water rejection. These are configurable features in controller firmware, not hardware properties. Verify firmware support before selecting a controller.
Cover glass thickness impact. PCAP sensitivity decreases non-linearly with cover glass thickness. Standard consumer PCAP stacks assume 0.7–1.0 mm glass. Industrial applications often use 2–4 mm glass for impact resistance, which requires specific touch controller tuning and potentially a different sensor design.
| Cover glass thickness | Standard PCAP works? | Notes |
|---|---|---|
| 0.55–1.0 mm | Yes | Optimum range for standard controllers |
| 1.1–2.0 mm | With tuning | Sensitivity reduction of 20–40%; firmware reconfiguration required |
| 2.1–3.0 mm | Specialist required | Requires an enhanced sensor design or amplified controller |
| 3.1–4.0 mm | Not recommended | Consider an IR grid or SAW alternative for thick glass applications |
4.3 EMI and noise immunity
Touch sensor films are large antennas. In industrial environments, near motors, variable-frequency drives, switching power supplies or wireless radios, PCAP sensors can generate significant radiated EMI or be susceptible to conducted noise on the ground plane.
- Specify IEC 61000-4-3 radiated immunity and IEC 61000-4-6 conducted immunity test levels as acceptance criteria for touch performance before sourcing sensors.
- Use a shielded flex cable between the display module and host PCB. Unshielded cables act as noise antennas.
- Connect the touch controller ground to chassis ground at a single, low-impedance point to avoid ground loops.
- Place touch controller decoupling capacitors within 1 mm of the IC power pins. Long traces cause controller malfunction in noisy environments.
5. Power consumption
The display subsystem is typically the dominant power consumer in battery-operated products and a significant thermal contributor in fanless systems. Power budgeting must address both the panel’s static power (logic and pixel circuitry) and the dynamic backlight power, which varies with brightness setting and operating duty cycle.
5.1 Display power budget components
| Component | Typical range | Notes |
|---|---|---|
| LCD panel logic (Vcc) | 15–80 mA @ 3.3 V | Relatively constant; scales with resolution |
| LED backlight (full brightness) | 100–800 mA @ 12–24 V | Dominant power consumer; varies with size and brightness |
| LED backlight (typical) | 30–50% of max | Target operating point for most applications |
| Touch controller | 5–20 mA @ 3.3 V | Idle modes available on most modern controllers |
| Display interface (MIPI DSI) | 10–50 mA | Included in SoC power budget; verify with the SoC datasheet |
5.2 Backlight power management
Backlight brightness is the primary lever for display power management. The relationship between PWM duty cycle and perceived brightness is non-linear (approximately gamma 2.2 for human vision), so small reductions in duty cycle near 100% have little perceptible effect but a meaningful power benefit.
PWM dimming considerations:
- PWM frequency must be above 200 Hz to avoid flicker perception in video content. Use 1 kHz or higher for medical and safety-critical applications.
- Low duty cycles (under 10%) can cause color shift in some LCD panels. Verify the minimum PWM duty cycle in the panel datasheet.
- LED driver current regulation (constant current) gives more consistent color temperature across brightness levels than voltage control.
- Backlight enable/disable sequencing must respect the panel’s power-up and power-down sequences to prevent image retention.
5.3 Adaptive brightness strategies
Implementing adaptive brightness in firmware significantly extends battery life in portable applications without degrading the user experience. An ambient light sensor feeding a brightness control algorithm is the recommended approach for outdoor-capable products.
- Map the ambient light sensor lux reading to backlight duty cycle using a piecewise linear or gamma curve.
- Apply hysteresis to the control loop (typically ±10%) to prevent oscillation near transition thresholds.
- Provide a user override with a timeout return to automatic mode.
- Log backlight operating hours if the product has a maintenance requirement. LED backlights degrade to 70% brightness (L70) over 20,000–50,000 hours depending on drive current.
5.4 Thermal management
LED backlights are the primary thermal source in display modules. In fanless enclosures or elevated ambient temperatures, thermal management of the display module is critical both to LED lifetime and to keeping the LCD cell below its operating temperature limit (typically 70°C for standard panels and 85°C for industrial-grade panels).
- Attach the display module to the enclosure chassis with thermally conductive gap-fill material to provide a conduction path to the enclosure wall.
- Derate backlight drive current at elevated ambient temperatures. Most LED driver ICs support thermal fold-back via an NTC thermistor input.
- Verify the LCD cell maximum operating temperature in the panel datasheet. Exceeding it causes permanent polarizer damage.
Warning: Operating a standard LCD panel above 70°C will permanently damage the polarizer, causing white patches or complete polarizer delamination. Select industrial-grade panels for environments above 50°C ambient.
6. Long-term availability
Display panels are manufactured on dedicated LCD fabrication lines. Unlike commodity semiconductors with decade-long production runs, display panels are subject to model transitions driven by consumer electronics demand. Industrial-grade displays offer longer production commitments, but planning for obsolescence is still essential.
6.1 Product lifecycle categories
| Category | Typical lifetime | EOL notice | Cost premium | Recommended for |
|---|---|---|---|---|
| Consumer grade | 2–3 years | 30–90 days | None (baseline) | Short-run products, prototypes |
| Commercial grade | 3–5 years | 6 months | +10–25% | Standard industrial products |
| Industrial / extended | 5–7+ years | 12 months | +25–60% | 10-year product lifecycles |
| Long-life / availability contract | 7–10+ years | 18+ months | +50–100% | Medical, defense, infrastructure |
6.2 Obsolescence risk mitigation
The most effective obsolescence mitigation strategy is to design in a display module with a confirmed extended production commitment from the manufacturer. Where this is not possible, the following engineering strategies reduce re-qualification risk when a panel transitions:
- Standardize on display interfaces (LVDS or eDP) that have a wide ecosystem of compatible panels. Avoid proprietary interfaces that limit second-source options.
- Abstract the display initialization sequence into a firmware configuration file or header, not hard-coded into application logic, so alternative panels can be re-qualified quickly.
- Maintain a dual-source shortlist at the design phase. Identify at least one second-source panel with equivalent electrical and mechanical characteristics before production launch.
- Negotiate last-time-buy (LTB) rights with your display supplier at production start. Agree notice periods and the LTB window in the supply agreement.
6.3 Supply chain strategy
Display panel supply is subject to spot price volatility, allocation during demand peaks and extended lead times (10–20 weeks for industrial-grade panels). Building supply chain resilience requires both an inventory strategy and supplier relationship management.
Recommended supply chain practices:
- Carry 8–12 weeks of safety stock for display panels on programs with committed production volume.
- Establish a direct relationship with the panel manufacturer, not only with the distribution channel. Direct relationships provide advance EOL notification and allocation priority.
- For high-volume programs (over 5,000 units a year), negotiate a blanket purchase order or consignment stock agreement to lock pricing and capacity.
- Include display panel lead time in your product’s master production schedule. Do not treat the display as a commodity item with short lead times.
6.4 Re-qualification process
When a panel replacement is required, whether planned or emergency, a structured re-qualification process minimizes schedule impact and protects product quality.
| Re-qualification step | Typical duration | Notes |
|---|---|---|
| Datasheet comparison (electrical, mechanical, optical) | 1–2 days | Focus on interface signals, timing and init sequence differences |
| Schematic and layout review | 1–3 days | Check connector pinout compatibility; may require an adapter |
| Firmware driver update | 3–10 days | Update init sequence, timing parameters and brightness curve |
| Functional verification | 3–5 days | Video, touch, power sequencing, temperature extremes |
| Environmental / EMC re-test (if required) | 2–4 weeks | Required if display panel changes affect EMC performance |
| Documentation update | 1–2 days | BOM, assembly drawing, test procedure |
7. Quick-reference checklist
Use this checklist at the start of display selection. Each item should be resolved before PCB schematic capture begins.
Interface compatibility
- Host processor MIPI DSI / LVDS / eDP / SPI output capability confirmed
- Lane count, lane speed and operating mode (Video/Command) verified
- Connector type and mating part confirmed with the mechanical engineer
- Cable length and routing reviewed for signal integrity
- Linux/RTOS panel driver identified or development time budgeted
Sunlight readability
- Ambient light levels documented for all deployment environments
- Minimum brightness (nits) specified
- Optical bonding decision made and communicated to the mechanical team
- Cover glass treatment (AG / AR / AR+AG) specified
- Operating temperature range confirmed against the panel specification
Touch integration
- Touch technology selected and confirmed against glove, water and stylus requirements
- Cover glass thickness specified; touch sensitivity verified at that thickness
- EMI environment characterized; touch controller noise immunity rating confirmed
- Touch controller interface (I2C/SPI) and interrupt GPIO assigned
- Firmware driver or SDK availability confirmed
Power consumption
- Backlight power allocated in the system power budget
- PWM frequency specified (over 1 kHz for medical and safety applications)
- Adaptive brightness strategy defined (ambient light sensor vs. manual)
- Thermal management approach confirmed with the mechanical engineer
- Operating temperature derating applied to backlight drive current
Long-term availability
- Panel production commitment (years) confirmed with the display supplier
- Second-source panel identified
- Last-time-buy rights negotiated
- Safety stock level and lead time entered in the master production schedule
- Obsolescence contact established at the panel manufacturer
8. Working with DCLTEK
DCL Technologies, Inc. (DCLTEK) specializes in display modules, touch panels and cable solutions for industrial and embedded applications. Our engineers work alongside hardware teams from requirements definition through production, identifying and resolving display integration risks before they become schedule problems. See how we support customers.
- Display selection: mapping your requirements to a qualified panel shortlist. Start with the Product Selection Catalog.
- Interface compatibility review: verifying your host processor and display panel are compatible before schematic capture, across MIPI DSI, LVDS and other interfaces.
- Optical stack specification: bonding, cover glass and treatment recommendations for your deployment environment, including sunlight-readable displays.
- Touch integration support: sensor selection, controller firmware tuning and EMI characterization for custom touch panels.
- Long-life supply: production commitments, safety stock and last-time-buy programs.
To discuss your next design or request a display selection consultation, contact our engineering team.
Frequently asked questions
When should I choose the display in an embedded design?
During system requirements definition, before schematic capture. At minimum, lock the interface type and form factor before PCB layout, and decide on optical bonding and the touch stack before mechanical enclosure design. Choosing a display after PCB layout is the most common cause of costly display-related respins.
How bright does a display need to be for outdoor use?
For direct sunlight, plan on 1,000 to 2,500+ nits with a contrast ratio of at least 1500:1, using a transflective or high-brightness panel with optical bonding. Covered or shaded semi-outdoor locations typically need 800 to 1,000 nits.
What does optical bonding do, and what are the trade-offs?
Optical bonding fills the air gap between the cover glass and the LCD with an optically clear adhesive or resin. It removes internal reflections, improves contrast in bright light by 2 to 3 times and seals against condensation. It adds 2 to 5 mm of stack height, adds $15 to $80 of module cost depending on size, and bonded assemblies cannot be repaired in the field.
Will PCAP touch work through thick cover glass?
Standard PCAP controllers work best with 0.55 to 1.0 mm glass. From 1.1 to 2.0 mm, sensitivity drops 20 to 40% and the firmware must be retuned. From 2.1 to 3.0 mm you need an enhanced sensor design or amplified controller, and above 3 mm an IR grid or SAW alternative is usually a better choice.
How long are display panels available before end-of-life?
Consumer-grade panels typically last 2 to 3 years with 30 to 90 days of EOL notice. Commercial-grade panels last 3 to 5 years, industrial and extended panels 5 to 7+ years, and long-life panels under an availability contract 7 to 10+ years with 18+ months of notice.
Ready to choose a display? Talk to a DCLTEK engineer.
