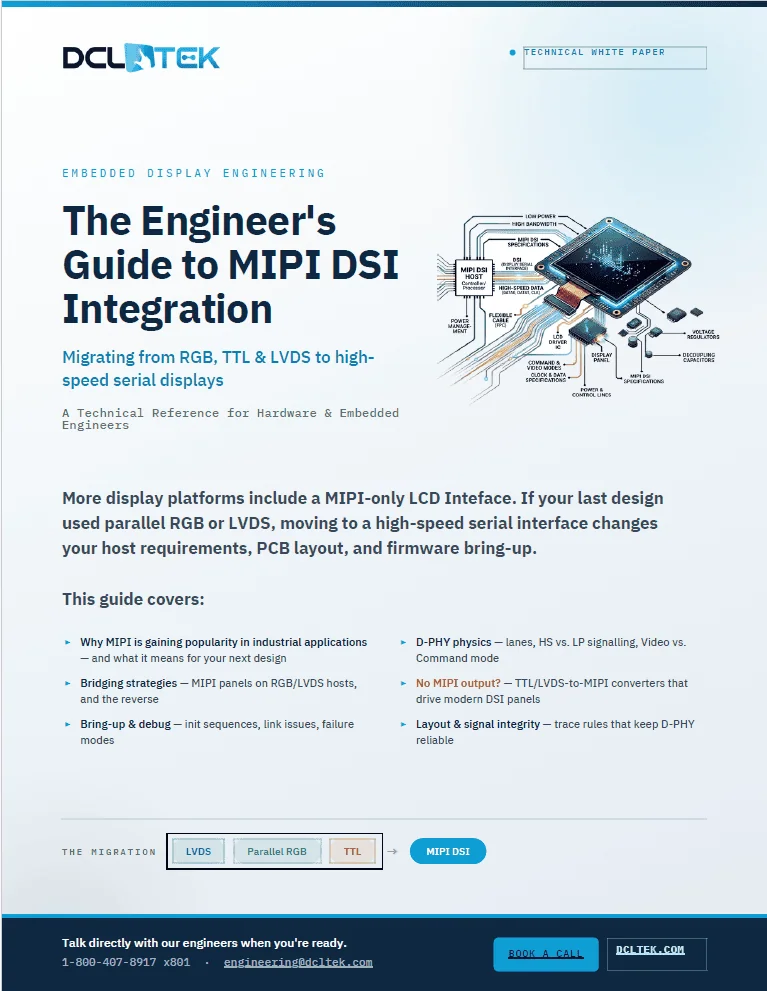

The Engineer's Guide to MIPI DSI LCD Interface Integration

1. Introduction

The display-interface landscape is shifting. For two decades, embedded designs relied on parallel RGB, also called TTL, for small and mid-size panels, and on LVDS for larger or higher-resolution ones. Both interfaces are mature, well understood and forgiving. But the supply base is moving: panel makers increasingly release new TFT and IPS modules with MIPI DSI as the only interface, mirroring the smartphone and tablet supply chain that drives LCD fab volume.

Engineers fluent in RGB and LVDS may find their preferred panels going end-of-life, or a MIPI-based LCD may have optical performance or business value that makes the interface appealing. The move from a clocked parallel bus to a packetized high-speed serial link is not a drop-in swap. It changes the host requirements, the board layout and the firmware bring-up.

This guide is written for the engineer making that transition. It explains what actually changes when you leave parallel behind, how to bridge between interface families when host and panel do not match, and how to bring up and debug a DSI link without losing weeks to cryptic failures.

Who this is for: hardware engineers, embedded systems designers and firmware leads selecting or integrating a display where the candidate panel uses MIPI DSI, especially those whose experience is rooted in RGB/TTL or LVDS designs.

1.1 How to use this guide

Sections 2 and 3 build the mental model: how the interfaces differ, and how DSI actually works. Sections 4 and 5 are migration playbooks, for RGB/TTL hosts and LVDS hosts respectively. Section 6 covers converters for hosts with no MIPI output, Section 7 covers bring-up and debugging, and Section 8 covers PCB layout and signal integrity. If your host and panel are already chosen, jump straight to the migration section that matches your mismatch, then read bring-up before you lay out the board.

1.2 When to start

Interface architecture must be resolved during system-requirements definition, before SoC selection is final. Whether the host has a native DSI port, or needs a bridge IC, dictates your schematic, BOM and power tree. Resolve it before schematic capture; never after layout.

Warning. A MIPI DSI panel cannot be driven from a parallel RGB or LVDS output without an active bridge IC. Discovering this after SoC selection forces either an SoC change or an unplanned bridge, and both are schedule-killers. Verify host DSI support before committing to the processor.

2. The interface landscape: parallel to serial

RGB/TTL, LVDS and MIPI DSI represent three generations of display interface, each solving the bandwidth and EMI problems of its predecessor. Understanding why each exists clarifies exactly what you gain and what you give up in a migration.

2.1 Interface comparison

Abbreviations: DPI = Display Pixel Interface (the parallel RGB timing bus). FPD-Link = Flat Panel Display Link (the serializer family LVDS is built on). D-PHY = the MIPI physical layer DSI rides on. DP = DisplayPort, the standard eDP extends.

2.2 Why panels are going MIPI

The shift is driven by economics, not engineering preference:

• LCD fab capacity follows the phone and tablet market, so new panel designs target the interface those volumes use: MIPI DSI.
• DSI’s low pin count shrinks the FPC and connector, enabling thinner bezels and smaller modules.
• A single PHY scales from one lane (a wearable) to four (a tablet), so panel makers standardize on it across a product family.

The result: the small- and mid-size TFT/IPS modules an embedded engineer reaches for are increasingly DSI-only, even when the application would have been served perfectly well by RGB.

2.3 What changes for the engineer

If your instincts were formed on parallel buses, three things change fundamentally with DSI. Each is a place where experienced RGB/LVDS engineers most often get caught out.

• Clocking. RGB exposes a pixel clock you can scope and reason about cycle by cycle. DSI hides pixels inside HS packets clocked at hundreds of Mbps to several Gbps per lane, so you cannot probe it with a standard oscilloscope channel.
• Initialization. RGB panels often “just work” once timing is set. A DSI panel requires a vendor-specific DCS command sequence sent over the link before any image appears. There is a software handshake before there is a picture.
• Software. RGB is a dumb pixel pipe. DSI is a protocol, with a host controller, a PHY to configure and a panel driver living in the OS. A missing or buggy driver stalls the project even when the hardware is perfect.

Tip. Treat a MIPI panel as a peripheral that must be configured and brought up, not as a passive display you simply clock pixels into. Budgeting time for firmware bring-up is the single biggest mindset shift for parallel-bus veterans.

Side note: where eDP fits, and why it isn’t a MIPI upgrade path

Embedded DisplayPort (eDP) is the interface to know for mid- and larger-size displays. Built on DisplayPort, it carries far more bandwidth than DSI over a handful of differential lanes, and it is the natural successor to LVDS in laptop-class and larger industrial panels, the tier above where DSI typically plays.

It is tempting to think of the progression as RGB → LVDS → DSI → eDP, but MIPI DSI and eDP are separate ecosystems, not a single ladder. DSI targets small and mid-size mobile-class panels; eDP targets mid and large high-bandwidth ones. Moving between them requires a protocol-converting bridge. eDP is not a “next step up” from DSI, and a DSI host does not upgrade to an eDP panel by configuration alone. Choose the interface that matches the panel tier, not the one that sounds newer.

3. MIPI DSI fundamentals

DSI runs over the MIPI D-PHY physical layer. A link has one clock lane and one to four data lanes, each a differential pair. Understanding the two signaling states and the two operating modes is the foundation for everything that follows.

3.1 Lanes and the D-PHY

• Each lane is a differential pair. The clock lane carries a DDR clock; data lanes carry packets.
• Lanes operate in two states. High-Speed (HS) is low-swing (~200 mV) differential at the full lane rate, used for pixel data. Low-Power (LP) is single-ended ~1.2 V signaling at a low rate, used for control, mode entry and command-mode sideband.
• Aggregate bandwidth = lane rate × number of data lanes. Confirm both against the panel’s pixel-clock requirement plus blanking and packet overhead; budget roughly 10–20%.

3.2 Video Mode vs. Command Mode

Confirm which mode your panel requires and that your host’s DSI controller supports it. Many SoC DSI IP blocks support only Video Mode, and that limitation is rarely on the front page of the datasheet.

3.3 DCS: the panel’s command language

• The DSI Command Set (DCS) is a standardized set of commands, such as sleep-out (0x11) and display-on (0x29), plus manufacturer-specific commands, sent in LP mode to configure the panel.
• Every DSI panel needs an initialization sequence: a manufacturer-supplied list of DCS writes that sets gamma, power and gate timing. Generic sequences rarely work; obtain the exact one for your panel.
• The sequence ends with sleep-out and display-on, with mandated delays between certain commands. Skipping a delay produces intermittent, hard-to-diagnose failures.

Warning. Do not derive a panel init sequence by guesswork or by reusing another panel’s. Missing or mis-ordered power-on commands can leave the panel dark, produce an unstable image or stress its internal rails. Always use the manufacturer’s sequence for your exact panel revision.

3.4 Reference lane-rate budget

Use this to sanity-check lane count before committing. Aggregate figures assume 24 bpp plus ~20% blanking and packet overhead; per-lane rate = aggregate ÷ lane count.

Always confirm the host’s maximum per-lane rate. A 4-lane panel on a host limited to ~1 Gbps per lane will not reach 1080p at 60 Hz.

4. Migrating from RGB / TTL to MIPI

This is the most common transition today, because the small- and mid-size TFTs that historically used RGB are exactly the modules going DSI-only. The path depends on whether your host has a native DSI port.

4.1 Decision: native DSI or bridge?

• SoC has a spare DSI port: drive the panel directly. Lowest cost and power, provided the OS supports the SoC’s DSI controller and the lane count is sufficient.
• Host only has RGB/DPI out: common on MCUs and older SoCs. Use an RGB→MIPI DSI bridge IC. The host keeps streaming parallel pixels; the bridge serializes them into DSI.

4.2 RGB→DSI bridge ICs

A bridge accepts parallel RGB (with DE or HV sync) and outputs DSI HS packets. Many integrate panel power sequencing and an I²C control port. Select against four axes:

• Input: confirm bit width (18/24-bit), sync mode (DE vs. HV) and maximum input pixel clock match your host.
• Output: lane count and maximum lane rate must meet the panel’s needs.
• Control: how is the panel init sequence delivered? Passed through the bridge over I²C, or sent directly to the panel? Some bridges proxy DSI commands; others must be configured themselves.
• Power sequencing: does the bridge sequence the panel rails, or must you do it in hardware?

Representative parts of this class (not endorsements): Toshiba TC358-series, Texas Instruments SN65DSI-series and Solomon Systech bridges.

4.3 What you gain and lose

• Gain: access to current panels, a smaller FPC and connector, and lower EMI than a wide parallel bus.
• Lose: a bridge adds BOM cost, board area, a power rail or two, and a software touch-point. Direct DSI avoids these but demands an SoC that natively supports it.

5. Migrating from LVDS to MIPI (and back)

LVDS remains the workhorse for larger industrial and medical panels and is not disappearing. Two migration directions arise: an LVDS host that must drive a new MIPI panel, and, increasingly, a MIPI-only SoC that must drive an existing LVDS panel you want to keep.

5.1 The two directions

• LVDS host → MIPI panel: use an LVDS→DSI bridge. Less common; it is usually easier to choose a panel that matches the host.
• MIPI host → LVDS panel: use a DSI→LVDS bridge. Increasingly common, because it lets you keep a qualified, long-lifecycle LVDS panel on a modern SoC whose PHY no longer offers LVDS.

5.2 DSI→LVDS bridge selection

• Confirm single- vs. dual-channel LVDS output to match the panel, and JEIDA vs. VESA/OpenLDI bit mapping. A mismatch produces color-scrambled output.
• Confirm DSI input lane count and per-lane rate from the host side.
• Confirm the bridge handles backlight-enable and panel power sequencing, or plan to do it in hardware.
• Verify a Linux/RTOS driver exists for the bridge, or budget the driver work.

5.3 When LVDS still wins

Migrating to MIPI is not always the right move. LVDS keeps two decisive advantages:

• Cable reach. LVDS (or FPD-Link III) drives 1–2 m; raw DSI does not reach beyond ~150 mm. For a remote-mounted panel, keep LVDS or serialize.
• Long-life and wide-temperature supply. Industrial-temperature, 10-year-lifecycle panels are still predominantly LVDS. DSI’s mobile-driven supply base churns faster, a consideration for products with long field lives.

Warning. MIPI D-PHY is a short-reach interface. Do not route raw DSI across a long internal cable or between boards over ~150 mm. For a remote panel, place a DSI→LVDS bridge near the host and run LVDS to the panel, or use a coax serializer.

6. No MIPI output, but you want a MIPI display?

It is one of the most common situations we see: an engineer has settled on a MIPI DSI panel because the size, brightness and price are right, but the host processor only exposes a parallel RGB/TTL or LVDS output. The instinct is to abandon the panel and hunt for an RGB or LVDS equivalent. Increasingly, that equivalent either does not exist or carries a steep premium.

You do not have to give up the panel. A TTL→MIPI or LVDS→MIPI converter lets your existing host drive a modern DSI panel with no change to the SoC, and DCLTEK builds these converter boards, including custom designs matched to your exact host timing and panel. See LVDS to MIPI converter boards for the options.

6.1 What the converter does

The converter accepts the pixel stream your host already produces (parallel RGB/TTL or LVDS), re-times and serializes it into D-PHY packets, handles panel power sequencing and the DCS initialization, and presents the host with a panel it can drive as if it were a familiar parallel or LVDS display. The DSI complexity lives on the converter, not in your SoC or your firmware.

6.2 Why this is worth doing

• Access modern panels. Use the latest high-resolution, high-brightness IPS modules, many of which ship MIPI-only, without re-spinning around a new SoC.
• Better unit economics. MIPI panels ride phone and tablet volume, so the same display often costs less in DSI than in an RGB or LVDS variant, if one even exists.
• Keep your platform. No processor change and no DSI driver bring-up on your side, protecting the firmware and certifications you have already invested in.
• Extend product life. When an RGB/LVDS panel goes end-of-life, a converter lets a long-lived design adopt a current DSI replacement instead of a redesign.

Tip. Bring the panel’s pixel clock, lane count and init sequence to the conversation early. With those three facts DCLTEK can confirm an off-the-shelf converter fits, or scope a custom converter board, before you commit the panel to your BOM.

7. Bring-up and debugging

Most DSI integration time is spent not on hardware but on getting the link to train and the panel to initialize. A disciplined bring-up order and a map of common failure modes save weeks.

7.1 Bring-up sequence

1. Power and sequencing first. Verify the panel rails (VCI / IOVCC, etc.) come up in the datasheet-specified order and timing, with reset asserted.
2. Release reset per the datasheet’s minimum LP-11 / reset-release timing.
3. LP-mode communication. Confirm the host can send DCS reads and writes in LP and the panel ACKs. Read the panel ID register to prove the link.
4. Run the init sequence. Push the manufacturer DCS sequence and observe the required inter-command delays.
5. Sleep-out (0x11) plus delay, then display-on (0x29).
6. Start the stream. Begin the HS video stream (Video Mode) or write a frame (Command Mode).
7. Tune. Adjust porches and blanking, then enable the backlight last.

Tip. Prove the LP control path (step 3) before worrying about HS. If you can read the panel ID over LP, your wiring, power and reset are correct, and remaining issues are almost always timing or init-sequence related.

7.2 Common failure modes

7.3 Tooling

• A DSI protocol analyzer decodes packets and DCS. It is invaluable but costly, so budget access early.
• For LP-only verification, a fast scope on the data pair shows the LP-11 handshake.
• Enable verbose DSI/DRM logging. Most Linux DSI bring-up is diagnosed straight from kernel DRM/KMS logs.

Warning. You cannot meaningfully probe an HS DSI lane with a standard oscilloscope channel: the swing is ~200 mV at Gbps rates on impedance-controlled pairs. Plan for a protocol analyzer or rely on the panel’s status reads; do not budget bring-up assuming you’ll “just scope it.”

8. PCB layout and signal integrity

D-PHY is forgiving compared to multi-Gbps SerDes, but it is still a differential high-speed interface and rewards disciplined layout. Most intermittent DSI faults trace back to layout shortcuts.

8.1 Routing rules

• 100 Ω differential on every lane (clock and data), referenced to a solid, continuous ground plane.
• Intra-pair skew: match P/N within a pair tightly; target < 5 mil (~0.1 mm).
• Lane-to-clock skew: keep data lanes length-matched to the clock within the PHY budget (commonly a few hundred mil; check your PHY).
• Keep lanes short: < 100–150 mm total from SoC or bridge to connector at high lane rates.
• Avoid stubs, vias and layer changes on the pairs. If a via is unavoidable, place a ground via nearby for return-current continuity.
• Maintain pair-to-pair spacing ≥ 3× line width, and keep DSI away from switching regulators and RF.

8.2 Connectors and FPC

• The FPC and connector are part of the channel. Confirm both are rated for the lane rate and that the FPC controls differential impedance.
• Place low-capacitance ESD protection on the lanes near the connector; high-capacitance parts roll off HS edges.
• Route reset and I²C control lines away from the HS pairs.

8.3 Power and decoupling

• Decouple the PHY and panel rails close to their pins, and enforce the panel’s power-sequence timing in hardware (load switches or a sequencer), not firmware alone.
• Backlight switching noise can couple into touch and DSI, so route and shield accordingly.

Tip. If you have a working reference design or EVK for your SoC’s DSI port or your bridge IC, copy its layout rules exactly before optimizing. Most first-spin DSI failures come from deviating from the reference without re-checking signal integrity.

9. Quick-reference checklist

Resolve each item before PCB schematic capture begins.

Interface architecture

• Host DSI capability confirmed (native port vs. bridge)
• Lane count and per-lane rate verified vs. pixel clock plus overhead
• Operating mode (Video/Command) supported by host and required by panel
• Bridge IC selected if needed (input, output, control, power sequencing)

Panel and protocol

• Manufacturer DCS init sequence obtained for the exact panel revision
• Pixel format (RGB888/666) matched between host and panel
• Power-up/down sequence and reset timing captured from the datasheet
• DCS panel-ID read planned as the first bring-up milestone

Software

• OS DSI/DRM panel driver exists or development time budgeted
• Bridge IC driver exists or budgeted
• Verbose DSI logging available for bring-up

Signal integrity and layout

• 100 Ω differential, continuous reference plane
• Intra-pair and lane-to-clock skew within budget
• Lane length < ~150 mm; reference-design layout followed
• Low-capacitance ESD on lanes; controlled-impedance FPC and connector

Reach and lifecycle

• Cable reach < 150 mm for raw DSI; bridge to LVDS or coax if longer
• Panel lifecycle and availability confirmed (DSI supply churns faster)
• Second-source or migration path identified

10. Working with DCLTEK

DCL Technologies, Inc. (DCLTEK) specializes in display modules, touch panels, bridge solutions and cable assemblies for industrial and embedded applications. As panel platforms move to MIPI, our engineering team helps hardware teams choose between native DSI and bridge architectures, source the right bridge IC, obtain validated init sequences and lay out reliable D-PHY links, before they become bring-up problems.

• Interface architecture review: native DSI vs. bridge, lane budgeting, mode selection.
• Panel sourcing and init sequences: qualified MIPI and LVDS panels with validated DCS sequences.
• Bridge IC selection: RGB→DSI, DSI→LVDS and serializer options matched to your host.
• Layout and signal-integrity review: D-PHY routing and FPC/connector review before fab.
• Long-life supply: keeping qualified LVDS panels alive on modern MIPI hosts.

See how DCLTEK supports OEM display customers, browse MIPI DSI displays, or search the full Product Selection Catalog. To discuss your next design or request a display selection consultation, contact our engineers.

Frequently asked questions

Can a MIPI DSI panel be driven from a parallel RGB or LVDS output?

Not directly. A MIPI DSI panel needs an active bridge IC or converter board between an RGB/TTL or LVDS host and the panel. Verify host DSI support before committing to the processor.

How far can a MIPI DSI signal be routed?

Raw DSI is a short-reach interface, roughly 150 mm. For a remote-mounted panel, place a DSI→LVDS bridge near the host and run LVDS (1–2 m), or use a coax serializer.

What is the difference between Video Mode and Command Mode?

In Video Mode the host streams pixels continuously with sync packets, and the panel has no frame buffer. In Command Mode the panel has its own GRAM, so the host can send frames in bursts and idle, enabling partial updates and low-power static images. Many SoC DSI controllers support only Video Mode.

Why does a MIPI DSI panel stay black even with the backlight on?

The most common cause is a missing or incomplete initialization sequence, or display-on (0x29) not being sent. Every DSI panel needs the manufacturer’s exact DCS init sequence for its panel revision.

When should I keep LVDS instead of moving to MIPI?

Keep LVDS when the panel must be mounted more than about 150 mm from the host, or when you need industrial-temperature panels with 10-year lifecycles, which are still predominantly LVDS.
